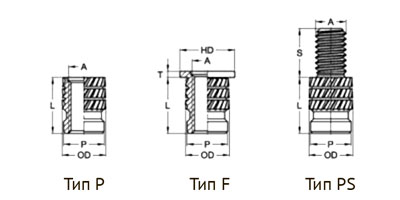

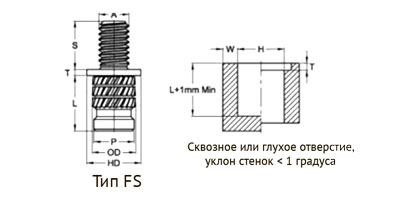

Вставка самонарезающая PressFix вид B, тип P / F / PS / FS с фланцем / без фланца
Техническое описание
| A | L | S | T | HD | OD | P | H+0,1 | W | |
|---|---|---|---|---|---|---|---|---|---|
| Артикул - тип P, латунь | |||||||||
| PBP2041 | M2 | 4,1 | 0,51 | 4,8 | 3,3 | 3,0 | 3,10 | 1,60 | |
| PBP2553 | M2,5 | 5,3 | 0,58 | 5,5 | 4,2 | 3,7 | 3,80 | 2,00 | |
| PBP3053 | M3 | 5,3 | 0,58 | 5,5 | 4,2 | 3,7 | 3,80 | 2,00 | |
| PBP3563 | M3,5 | 6,3 | 0,74 | 6,4 | 5,0 | 4,5 | 4,60 | 2,50 | |
| PBP4074 | M4 | 7,4 | 0,89 | 7,1 | 5,8 | 5,3 | 5,40 | 2,50 | |
| PBP5083 | M5 | 8,3 | 1,07 | 7,9 | 6,6 | 6,1 | 6,20 | 2,50 | |
| PBP6092 | M6 | 9,2 | 1,32 | 9,5 | 8,2 | 7,7 | 7,80 | 2,80 | |
| PBP8092 | M8 | 9,2 | 1,32 | 11,1 | 9,7 | 9,3 | 9,40 | 3,80 | |
| PBP1092 | M10 | 9,2 | 1,57 | 14,0 | 12,7 | 12,2 | 12,30 | 5,00 | |
| Артикул - тип F, латунь | |||||||||
| PBF2041 | M2 | 4,1 | 0,51 | 4,8 | 3,3 | 3,0 | 3,10 | 1,60 | |
| PBF2553 | M2,5 | 5,3 | 0,58 | 5,5 | 4,2 | 3,7 | 3,80 | 2,00 | |
| PBF3053 | M3 | 5,3 | 0,58 | 5,5 | 4,2 | 3,7 | 3,80 | 2,00 | |
| PBF3563 | M3,5 | 6,3 | 0,74 | 6,4 | 5,0 | 4,5 | 4,60 | 2,50 | |
| PBF4074 | M4 | 7,4 | 0,89 | 7,1 | 5,8 | 5,3 | 5,40 | 2,50 | |
| PBF5083 | M5 | 8,3 | 1,07 | 7,9 | 6,6 | 6,1 | 6,20 | 2,50 | |
| PBF6092 | M6 | 9,2 | 1,32 | 9,5 | 8,2 | 7,7 | 7,80 | 2,80 | |
| PBF8092 | M8 | 9,2 | 1,32 | 11,1 | 9,7 | 9,3 | 9,40 | 3,80 | |
| PBF1092 | M10 | 9,2 | 1,57 | 14,0 | 12,7 | 12,2 | 12,30 | 5,00 | |
| Артикул - тип PS, латунь | |||||||||
| PBPS2050 | M2 | 4,1 | 5,0 ⋅ 6,0 ⋅ 8,0 ⋅ 10,0 ⋅ 12,0 ⋅ 14,0 ⋅ 16,0 ⋅ 18,0 ⋅ 20,0 ⋅ 25,0 | 0,51 | 4,8 | 3,3 | 3,0 | 3,10 | 1,60 |
| PBPS2550 | M2,5 | 5,3 | 5,0 ⋅ 6,0 ⋅ 8,0 ⋅ 10,0 ⋅ 12,0 ⋅ 14,0 ⋅ 16,0 ⋅ 18,0 ⋅ 20,0 ⋅ 25,0 | 0,58 | 5,5 | 4,2 | 3,7 | 3,80 | 2,00 |
| PBPS3050 | M3 | 5,3 | 5,0 ⋅ 6,0 ⋅ 8,0 ⋅ 10,0 ⋅ 12,0 ⋅ 14,0 ⋅ 16,0 ⋅ 18,0 ⋅ 20,0 ⋅ 25,0 | 0,58 | 5,5 | 4,2 | 3,7 | 3,80 | 2,00 |
| PBPS3550 | M3,5 | 6,3 | 5,0 ⋅ 6,0 ⋅ 8,0 ⋅ 10,0 ⋅ 12,0 ⋅ 14,0 ⋅ 16,0 ⋅ 18,0 ⋅ 20,0 ⋅ 25,0 | 0,74 | 6,4 | 5,0 | 4,5 | 4,60 | 2,50 |
| PBPS4050 | M4 | 7,4 | 5,0 ⋅ 6,0 ⋅ 8,0 ⋅ 10,0 ⋅ 12,0 ⋅ 14,0 ⋅ 16,0 ⋅ 18,0 ⋅ 20,0 ⋅ 25,0 | 0,89 | 7,1 | 5,8 | 5,3 | 5,40 | 2,50 |
| PBPS5050 | M5 | 8,3 | 5,0 ⋅ 6,0 ⋅ 8,0 ⋅ 10,0 ⋅ 12,0 ⋅ 14,0 ⋅ 16,0 ⋅ 18,0 ⋅ 20,0 ⋅ 25,0 | 1,07 | 7,9 | 6,6 | 6,1 | 6,20 | 2,50 |
| PBPS6050 | M6 | 9,2 | 5,0 ⋅ 6,0 ⋅ 8,0 ⋅ 10,0 ⋅ 12,0 ⋅ 14,0 ⋅ 16,0 ⋅ 18,0 ⋅ 20,0 ⋅ 25,0 | 1,32 | 9,5 | 8,2 | 7,7 | 7,80 | 2,80 |
| PBPS8050 | M8 | 9,2 | 5,0 ⋅ 6,0 ⋅ 8,0 ⋅ 10,0 ⋅ 12,0 ⋅ 14,0 ⋅ 16,0 ⋅ 18,0 ⋅ 20,0 ⋅ 25,0 | 1,32 | 11,1 | 9,7 | 9,3 | 9,40 | 3,80 |
| PBPS1050 | M10 | 9,2 | 5,0 ⋅ 6,0 ⋅ 8,0 ⋅ 10,0 ⋅ 12,0 ⋅ 14,0 ⋅ 16,0 ⋅ 18,0 ⋅ 20,0 ⋅ 25,0 | 1,57 | 14,0 | 12,7 | 12,2 | 12,30 | 5,00 |
| Артикул - тип FS, латунь | |||||||||
| PBFS2050 | M2 | 4,1 | 5,0 ⋅ 6,0 ⋅ 8,0 ⋅ 10,0 ⋅ 12,0 ⋅ 14,0 ⋅ 16,0 ⋅ 18,0 ⋅ 20,0 ⋅ 25,0 | 0,51 | 4,8 | 3,3 | 3,0 | 3,10 | 1,60 |
| PBFS2550 | M2,5 | 5,3 | 5,0 ⋅ 6,0 ⋅ 8,0 ⋅ 10,0 ⋅ 12,0 ⋅ 14,0 ⋅ 16,0 ⋅ 18,0 ⋅ 20,0 ⋅ 25,0 | 0,58 | 5,5 | 4,2 | 3,7 | 3,80 | 2,00 |
| PBFS3050 | M3 | 5,3 | 5,0 ⋅ 6,0 ⋅ 8,0 ⋅ 10,0 ⋅ 12,0 ⋅ 14,0 ⋅ 16,0 ⋅ 18,0 ⋅ 20,0 ⋅ 25,0 | 0,58 | 5,5 | 4,2 | 3,7 | 3,80 | 2,00 |
| PBFS3550 | M3,5 | 6,3 | 5,0 ⋅ 6,0 ⋅ 8,0 ⋅ 10,0 ⋅ 12,0 ⋅ 14,0 ⋅ 16,0 ⋅ 18,0 ⋅ 20,0 ⋅ 25,0 | 0,74 | 6,4 | 5,0 | 4,5 | 4,60 | 2,50 |
| PBFS4050 | M4 | 7,4 | 5,0 ⋅ 6,0 ⋅ 8,0 ⋅ 10,0 ⋅ 12,0 ⋅ 14,0 ⋅ 16,0 ⋅ 18,0 ⋅ 20,0 ⋅ 25,0 | 0,89 | 7,1 | 5,8 | 5,3 | 5,40 | 2,50 |
| PBFS5050 | M5 | 8,3 | 5,0 ⋅ 6,0 ⋅ 8,0 ⋅ 10,0 ⋅ 12,0 ⋅ 14,0 ⋅ 16,0 ⋅ 18,0 ⋅ 20,0 ⋅ 25,0 | 1,07 | 7,9 | 6,6 | 6,1 | 6,20 | 2,50 |
| PBFS6050 | M6 | 9,2 | 5,0 ⋅ 6,0 ⋅ 8,0 ⋅ 10,0 ⋅ 12,0 ⋅ 14,0 ⋅ 16,0 ⋅ 18,0 ⋅ 20,0 ⋅ 25,0 | 1,32 | 9,5 | 8,2 | 7,7 | 7,80 | 2,80 |
| PBFS8050 | M8 | 9,2 | 5,0 ⋅ 6,0 ⋅ 8,0 ⋅ 10,0 ⋅ 12,0 ⋅ 14,0 ⋅ 16,0 ⋅ 18,0 ⋅ 20,0 ⋅ 25,0 | 1,32 | 11,1 | 9,7 | 9,3 | 9,40 | 3,80 |
| PBFS1050 | M10 | 9,2 | 5,0 ⋅ 6,0 ⋅ 8,0 ⋅ 10,0 ⋅ 12,0 ⋅ 14,0 ⋅ 16,0 ⋅ 18,0 ⋅ 20,0 ⋅ 25,0 | 1,57 | 14,0 | 12,7 | 12,2 | 12,30 | 5,00 |
