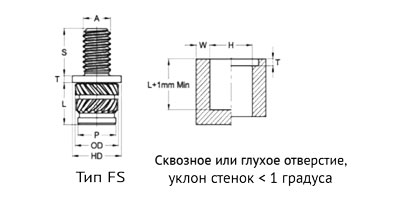

Вставка вплавляемая HotFix вид К тип P / F / PS / FS с внутренней и внешней резьбой
Техническое описание
| A | L | S | T | HD | OD | P | H+0,1 | W | |
|---|---|---|---|---|---|---|---|---|---|
| Артикул - тип P, латунь | |||||||||
| HKP2040 | M2 | 4,0 ⋅ 2,5 ⋅ 3,0 | 0,53 | 4,8 | 3,6 | 3,1 | 3,2 | 1,3 | |
| HKP2557 | M2,5 | 5,7 ⋅ 4,0 | 0,61 | 5,5 | 4,6 | 3,9 | 4,0 | 1,6 | |
| HKP3057 | M3 | 5,7 ⋅ 4,0 ⋅ 4,8 | 0,61 | 5,5 | 4,6 | 3,9 | 4,0 | 1,6 | |
| HKP3571 | M3,5 | 7,1 ⋅ 5,0 | 0,76 | 6,4 | 5,4 | 4,7 | 4,8 | 1,8 | |
| HKP4081 | M4 | 8,1 ⋅ 4,0 ⋅ 4,8 ⋅ 5,8 | 0,91 | 7,1 | 6,3 | 5,5 | 5,6 | 2,1 | |
| HKP5095 | M5 | 9,5 ⋅ 5,8 | 1,09 | 7,9 | 7,1 | 6,3 | 6,4 | 2,6 | |
| HKP6013 | M6 | 12,7 ⋅ 6,8 ⋅ 9,5 | 1,35 | 9,5 | 8,7 | 7,9 | 8,0 | 3,3 | |
| HKP8013 | M8 | 12,7 | 1,35 | 11,1 | 10,2 | 9,5 | 9,6 | 4,5 | |
| HKP1013 | M10 | 12,7 | 1,60 | 14,0 | 12,6 | 11,8 | 11,9 | 6,0 | |
| HKP1216 | M12 | 15,9 | 2,00 | 19,0 | 16,7 | 15,8 | 16,0 | 8,0 | |
| Артикул - тип F, латунь | |||||||||
| HKF2040 | M2 | 4,0 ⋅ 2,5 ⋅ 3,0 | 0,53 | 4,8 | 3,6 | 3,1 | 3,2 | 1,3 | |
| HKF2557 | M2,5 | 5,7 ⋅ 4,0 | 0,61 | 5,5 | 4,6 | 3,9 | 4,0 | 1,6 | |
| HKF3057 | M3 | 5,7 ⋅ 4,0 ⋅ 4,8 | 0,61 | 5,5 | 4,6 | 3,9 | 4,0 | 1,6 | |
| HKF3571 | M3,5 | 7,1 ⋅ 5,0 | 0,76 | 6,4 | 5,4 | 4,7 | 4,8 | 1,8 | |
| HKF4081 | M4 | 8,1 ⋅ 4,0 ⋅ 4,8 ⋅ 5,8 | 0,91 | 7,1 | 6,3 | 5,5 | 5,6 | 2,1 | |
| HKF5095 | M5 | 9,5 ⋅ 5,8 | 1,09 | 7,9 | 7,1 | 6,3 | 6,4 | 2,6 | |
| HKF6013 | M6 | 12,7 ⋅ 6,8 ⋅ 9,5 | 1,35 | 9,5 | 8,7 | 7,9 | 8,0 | 3,3 | |
| HKF8013 | M8 | 12,7 | 1,35 | 11,1 | 10,2 | 9,5 | 9,6 | 4,5 | |
| HKF1013 | M10 | 12,7 | 1,60 | 14,0 | 12,6 | 11,8 | 11,9 | 6,0 | |
| HKF1216 | M12 | 15,9 | 2,00 | 19,0 | 16,7 | 15,8 | 16,0 | 8,0 | |
| Артикул - тип PS, латунь | |||||||||
| HKPS204050 | M2 | 4,0 ⋅ 2,5 ⋅ 3,0 | 5,0 ⋅ 6,0 ⋅ 8,0 ⋅ 10,0 ⋅ 12,0 ⋅ 14,0 ⋅ 16,0 ⋅ 18,0 ⋅ 20,0 ⋅ 25,0 | 0,53 | 4,8 | 3,6 | 3,1 | 3,2 | 1,3 |
| HKPS255750 | M2,5 | 5,7 ⋅ 4,0 | 5,0 ⋅ 6,0 ⋅ 8,0 ⋅ 10,0 ⋅ 12,0 ⋅ 14,0 ⋅ 16,0 ⋅ 18,0 ⋅ 20,0 ⋅ 25,0 | 0,61 | 5,5 | 4,6 | 3,9 | 4,0 | 1,6 |
| HKPS305750 | M3 | 5,7 ⋅ 4,0 ⋅ 4,8 | 5,0 ⋅ 6,0 ⋅ 8,0 ⋅ 10,0 ⋅ 12,0 ⋅ 14,0 ⋅ 16,0 ⋅ 18,0 ⋅ 20,0 ⋅ 25,0 | 0,61 | 5,5 | 4,6 | 3,9 | 4,0 | 1,6 |
| HKPS357150 | M3,5 | 7,1 ⋅ 5,0 | 5,0 ⋅ 6,0 ⋅ 8,0 ⋅ 10,0 ⋅ 12,0 ⋅ 14,0 ⋅ 16,0 ⋅ 18,0 ⋅ 20,0 ⋅ 25,0 | 0,76 | 6,4 | 5,4 | 4,7 | 4,8 | 1,8 |
| HKPS408150 | M4 | 8,1 ⋅ 4,0 ⋅ 4,8 ⋅ 5,8 | 5,0 ⋅ 6,0 ⋅ 8,0 ⋅ 10,0 ⋅ 12,0 ⋅ 14,0 ⋅ 16,0 ⋅ 18,0 ⋅ 20,0 ⋅ 25,0 | 0,91 | 7,1 | 6,3 | 5,5 | 5,6 | 2,1 |
| HKPS509550 | M5 | 9,5 ⋅ 5,8 | 5,0 ⋅ 6,0 ⋅ 8,0 ⋅ 10,0 ⋅ 12,0 ⋅ 14,0 ⋅ 16,0 ⋅ 18,0 ⋅ 20,0 ⋅ 25,0 | 1,09 | 7,9 | 7,1 | 6,3 | 6,4 | 2,6 |
| HKPS601250 | M6 | 12,7 ⋅ 6,8 ⋅ 9,5 | 5,0 ⋅ 6,0 ⋅ 8,0 ⋅ 10,0 ⋅ 12,0 ⋅ 14,0 ⋅ 16,0 ⋅ 18,0 ⋅ 20,0 ⋅ 25,0 | 1,35 | 9,5 | 8,7 | 7,9 | 8,0 | 3,3 |
| HKPS801250 | M8 | 12,7 | 5,0 ⋅ 6,0 ⋅ 8,0 ⋅ 10,0 ⋅ 12,0 ⋅ 14,0 ⋅ 16,0 ⋅ 18,0 ⋅ 20,0 ⋅ 25,0 | 1,35 | 11,1 | 10,2 | 9,5 | 9,6 | 4,5 |
| HKPS101250 | M10 | 12,7 | 5,0 ⋅ 6,0 ⋅ 8,0 ⋅ 10,0 ⋅ 12,0 ⋅ 14,0 ⋅ 16,0 ⋅ 18,0 ⋅ 20,0 ⋅ 25,0 | 1,60 | 14,0 | 12,6 | 11,8 | 11,9 | 6,0 |
| HKPS121550 | M12 | 15,9 | 5,0 ⋅ 6,0 ⋅ 8,0 ⋅ 10,0 ⋅ 12,0 ⋅ 14,0 ⋅ 16,0 ⋅ 18,0 ⋅ 20,0 ⋅ 25,0 | 2,00 | 19,0 | 16,7 | 15,8 | 16,0 | 8,0 |
| Артикул - тип FS, латунь | |||||||||
| HKFS204050 | M2 | 4,0 ⋅ 2,5 ⋅ 3,0 | 5,0 ⋅ 6,0 ⋅ 8,0 ⋅ 10,0 ⋅ 12,0 ⋅ 14,0 ⋅ 16,0 ⋅ 18,0 ⋅ 20,0 ⋅ 25,0 | 0,53 | 4,8 | 3,6 | 3,1 | 3,2 | 1,3 |
| HKFS255750 | M2,5 | 5,7 ⋅ 4,0 | 5,0 ⋅ 6,0 ⋅ 8,0 ⋅ 10,0 ⋅ 12,0 ⋅ 14,0 ⋅ 16,0 ⋅ 18,0 ⋅ 20,0 ⋅ 25,0 | 0,61 | 5,5 | 4,6 | 3,9 | 4,0 | 1,6 |
| HKFS305750 | M3 | 5,7 ⋅ 4,0 ⋅ 4,8 | 5,0 ⋅ 6,0 ⋅ 8,0 ⋅ 10,0 ⋅ 12,0 ⋅ 14,0 ⋅ 16,0 ⋅ 18,0 ⋅ 20,0 ⋅ 25,0 | 0,61 | 5,5 | 4,6 | 3,9 | 4,0 | 1,6 |
| HKFS357150 | M3,5 | 7,1 ⋅ 5,0 | 5,0 ⋅ 6,0 ⋅ 8,0 ⋅ 10,0 ⋅ 12,0 ⋅ 14,0 ⋅ 16,0 ⋅ 18,0 ⋅ 20,0 ⋅ 25,0 | 0,76 | 6,4 | 5,4 | 4,7 | 4,8 | 1,8 |
| HKFS408150 | M4 | 8,1 ⋅ 4,0 ⋅ 4,8 ⋅ 5,8 | 5,0 ⋅ 6,0 ⋅ 8,0 ⋅ 10,0 ⋅ 12,0 ⋅ 14,0 ⋅ 16,0 ⋅ 18,0 ⋅ 20,0 ⋅ 25,0 | 0,91 | 7,1 | 6,3 | 5,5 | 5,6 | 2,1 |
| HKFS509550 | M5 | 9,5 ⋅ 5,8 | 5,0 ⋅ 6,0 ⋅ 8,0 ⋅ 10,0 ⋅ 12,0 ⋅ 14,0 ⋅ 16,0 ⋅ 18,0 ⋅ 20,0 ⋅ 25,0 | 1,09 | 7,9 | 7,1 | 6,3 | 6,4 | 2,6 |
| HKFS601250 | M6 | 12,7 ⋅ 6,8 ⋅ 9,5 | 5,0 ⋅ 6,0 ⋅ 8,0 ⋅ 10,0 ⋅ 12,0 ⋅ 14,0 ⋅ 16,0 ⋅ 18,0 ⋅ 20,0 ⋅ 25,0 | 1,35 | 9,5 | 8,7 | 7,9 | 8,0 | 3,3 |
| HKFS801250 | M8 | 12,7 | 5,0 ⋅ 6,0 ⋅ 8,0 ⋅ 10,0 ⋅ 12,0 ⋅ 14,0 ⋅ 16,0 ⋅ 18,0 ⋅ 20,0 ⋅ 25,0 | 1,35 | 11,1 | 10,2 | 9,5 | 9,6 | 4,5 |
| HKFS101250 | M10 | 12,7 | 5,0 ⋅ 6,0 ⋅ 8,0 ⋅ 10,0 ⋅ 12,0 ⋅ 14,0 ⋅ 16,0 ⋅ 18,0 ⋅ 20,0 ⋅ 25,0 | 1,60 | 14,0 | 12,6 | 11,8 | 11,9 | 6,0 |
| HKFS121550 | M12 | 15,9 | 5,0 ⋅ 6,0 ⋅ 8,0 ⋅ 10,0 ⋅ 12,0 ⋅ 14,0 ⋅ 16,0 ⋅ 18,0 ⋅ 20,0 ⋅ 25,0 | 2,00 | 19,0 | 16,7 | 15,8 | 16,0 | 8,0 |
