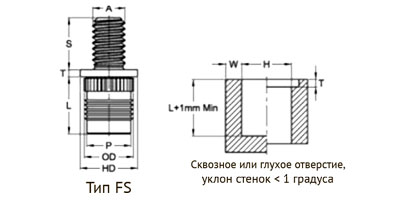

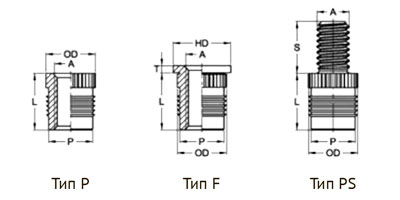

Вставка самонарезающая PressFix вид A, тип P / F / PS / FS с фланцем / без фланца
Техническое описание
| A | L | S | T | HD | OD | P | H+0,1 | W | кол-во ребер |
|
|---|---|---|---|---|---|---|---|---|---|---|
| Артикул - тип P, латунь | ||||||||||
| PAP2040 | M2 | 4,0 | 0,45 | 4,8 | 3,7 | 3,1 | 3,2 | 1,6 | 2 | |
| PAP2548 | M2,5 | 4,8 | 0,58 | 5,5 | 4,5 | 3,9 | 4,0 | 2,0 | 3 | |
| PAP3048 | M3 | 4,8 | 0,58 | 5,5 | 4,5 | 3,9 | 4,0 | 2,0 | 3 | |
| PAP3364 | M3,5 | 6,4 | 0,74 | 6,4 | 5,3 | 4,7 | 4,8 | 2,4 | 4 | |
| PAP4079 | M4 | 7,9 | 0,89 | 7,1 | 6,1 | 5,5 | 5,6 | 2,8 | 5 | |
| PAP5095 | M5 | 9,5 | 1,07 | 7,9 | 7,0 | 6,3 | 6,4 | 3,2 | 5 | |
| PAP6012 | M6 | 12,7 | 1,32 | 9,5 | 8,6 | 7,9 | 8,0 | 4,0 | 7 | |
| PAP8012 | M8 | 12,7 | 1,32 | 11,1 | 10,2 | 9,5 | 9,6 | 4,8 | 7 | |
| Артикул - тип F, латунь | ||||||||||
| PAF2040 | M2 | 4,0 | 0,45 | 4,8 | 3,7 | 3,1 | 3,2 | 1,6 | 2 | |
| PAF2548 | M2,5 | 4,8 | 0,58 | 5,5 | 4,5 | 3,9 | 4,0 | 2,0 | 3 | |
| PAF3048 | M3 | 4,8 | 0,58 | 5,5 | 4,5 | 3,9 | 4,0 | 2,0 | 3 | |
| PAF3364 | M3,5 | 6,4 | 0,74 | 6,4 | 5,3 | 4,7 | 4,8 | 2,4 | 4 | |
| PAF4079 | M4 | 7,9 | 0,89 | 7,1 | 6,1 | 5,5 | 5,6 | 2,8 | 5 | |
| PAF5095 | M5 | 9,5 | 1,07 | 7,9 | 7,0 | 6,3 | 6,4 | 3,2 | 5 | |
| PAF6012 | M6 | 12,7 | 1,32 | 9,5 | 8,6 | 7,9 | 8,0 | 4,0 | 7 | |
| PAF8012 | M8 | 12,7 | 1,32 | 11,1 | 10,2 | 9,5 | 9,6 | 4,8 | 7 | |
| Артикул - тип PS, латунь | ||||||||||
| PAPS2050 | M2 | 4,0 | 5,0 ⋅ 6,0 ⋅ 8,0 ⋅ 10,0 ⋅ 12,0 ⋅ 14,0 ⋅ 16,0 ⋅ 18,0 ⋅ 20,0 ⋅ 25,0 | 0,45 | 4,8 | 3,7 | 3,1 | 3,2 | 1,6 | 2 |
| PAPS2550 | M2,5 | 4,8 | 5,0 ⋅ 6,0 ⋅ 8,0 ⋅ 10,0 ⋅ 12,0 ⋅ 14,0 ⋅ 16,0 ⋅ 18,0 ⋅ 20,0 ⋅ 25,0 | 0,58 | 5,5 | 4,5 | 3,9 | 4,0 | 2,0 | 3 |
| PAPS3050 | M3 | 4,8 | 5,0 ⋅ 6,0 ⋅ 8,0 ⋅ 10,0 ⋅ 12,0 ⋅ 14,0 ⋅ 16,0 ⋅ 18,0 ⋅ 20,0 ⋅ 25,0 | 0,58 | 5,5 | 4,5 | 3,9 | 4,0 | 2,0 | 3 |
| PAPS3550 | M3,5 | 6,4 | 5,0 ⋅ 6,0 ⋅ 8,0 ⋅ 10,0 ⋅ 12,0 ⋅ 14,0 ⋅ 16,0 ⋅ 18,0 ⋅ 20,0 ⋅ 25,0 | 0,74 | 6,4 | 5,3 | 4,7 | 4,8 | 2,4 | 4 |
| PAPS4050 | M4 | 7,9 | 5,0 ⋅ 6,0 ⋅ 8,0 ⋅ 10,0 ⋅ 12,0 ⋅ 14,0 ⋅ 16,0 ⋅ 18,0 ⋅ 20,0 ⋅ 25,0 | 0,89 | 7,1 | 6,1 | 5,5 | 5,6 | 2,8 | 5 |
| PAPS5050 | M5 | 9,5 | 5,0 ⋅ 6,0 ⋅ 8,0 ⋅ 10,0 ⋅ 12,0 ⋅ 14,0 ⋅ 16,0 ⋅ 18,0 ⋅ 20,0 ⋅ 25,0 | 1,07 | 7,9 | 7,0 | 6,3 | 6,4 | 3,2 | 5 |
| PAPS6050 | M6 | 12,7 | 5,0 ⋅ 6,0 ⋅ 8,0 ⋅ 10,0 ⋅ 12,0 ⋅ 14,0 ⋅ 16,0 ⋅ 18,0 ⋅ 20,0 ⋅ 25,0 | 1,32 | 9,5 | 8,6 | 7,9 | 8,0 | 4,0 | 7 |
| PAPS8050 | M8 | 12,7 | 5,0 ⋅ 6,0 ⋅ 8,0 ⋅ 10,0 ⋅ 12,0 ⋅ 14,0 ⋅ 16,0 ⋅ 18,0 ⋅ 20,0 ⋅ 25,0 | 1,32 | 11,1 | 10,2 | 9,5 | 9,6 | 4,8 | 7 |
| Артикул - тип FS, латунь | ||||||||||
| PAFS2050 | M2 | 4,0 | 5,0 ⋅ 6,0 ⋅ 8,0 ⋅ 10,0 ⋅ 12,0 ⋅ 14,0 ⋅ 16,0 ⋅ 18,0 ⋅ 20,0 ⋅ 25,0 | 0,45 | 4,8 | 3,7 | 3,1 | 3,2 | 1,6 | 2 |
| PAFS2550 | M2,5 | 4,8 | 5,0 ⋅ 6,0 ⋅ 8,0 ⋅ 10,0 ⋅ 12,0 ⋅ 14,0 ⋅ 16,0 ⋅ 18,0 ⋅ 20,0 ⋅ 25,0 | 0,58 | 5,5 | 4,5 | 3,9 | 4,0 | 2,0 | 3 |
| PAFS3050 | M3 | 4,8 | 5,0 ⋅ 6,0 ⋅ 8,0 ⋅ 10,0 ⋅ 12,0 ⋅ 14,0 ⋅ 16,0 ⋅ 18,0 ⋅ 20,0 ⋅ 25,0 | 0,58 | 5,5 | 4,5 | 3,9 | 4,0 | 2,0 | 3 |
| PAFS3550 | M3,5 | 6,4 | 5,0 ⋅ 6,0 ⋅ 8,0 ⋅ 10,0 ⋅ 12,0 ⋅ 14,0 ⋅ 16,0 ⋅ 18,0 ⋅ 20,0 ⋅ 25,0 | 0,74 | 6,4 | 5,3 | 4,7 | 4,8 | 2,4 | 4 |
| PAFS4050 | M4 | 7,9 | 5,0 ⋅ 6,0 ⋅ 8,0 ⋅ 10,0 ⋅ 12,0 ⋅ 14,0 ⋅ 16,0 ⋅ 18,0 ⋅ 20,0 ⋅ 25,0 | 0,89 | 7,1 | 6,1 | 5,5 | 5,6 | 2,8 | 5 |
| PAFS5050 | M5 | 9,5 | 5,0 ⋅ 6,0 ⋅ 8,0 ⋅ 10,0 ⋅ 12,0 ⋅ 14,0 ⋅ 16,0 ⋅ 18,0 ⋅ 20,0 ⋅ 25,0 | 1,07 | 7,9 | 7,0 | 6,3 | 6,4 | 3,2 | 5 |
| PAFS6050 | M6 | 12,7 | 5,0 ⋅ 6,0 ⋅ 8,0 ⋅ 10,0 ⋅ 12,0 ⋅ 14,0 ⋅ 16,0 ⋅ 18,0 ⋅ 20,0 ⋅ 25,0 | 1,32 | 9,5 | 8,6 | 7,9 | 8,0 | 4,0 | 7 |
| PAFS8050 | M8 | 12,7 | 5,0 ⋅ 6,0 ⋅ 8,0 ⋅ 10,0 ⋅ 12,0 ⋅ 14,0 ⋅ 16,0 ⋅ 18,0 ⋅ 20,0 ⋅ 25,0 | 1,32 | 11,1 | 10,2 | 9,5 | 9,6 | 4,8 | 7 |
